Wheel brushes crimped, wide, universal use, with hole

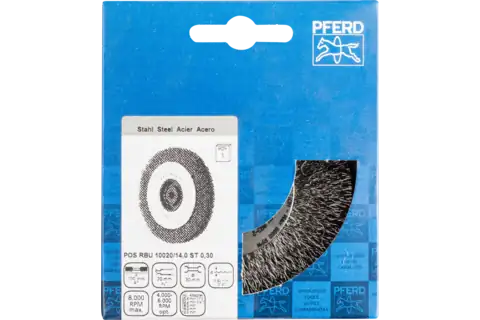

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder

POS RBU 10020/14,0 ST 0,30

Item number:: 43701105
EAN:: 4007220956236

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder 1

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder 2

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder 3

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder 4

Technical data

Distributor Search

Technical information

POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder

Dia. external: 100 mm
Dia. filament material: 0.3 mm
Dia. hole: 14 mm
Dia. hole included in the set: 12/14/18/22.2/25.4
Dia. hole, max.: 30 mm
Filament material: Steel wire (ST)
Grit size: -
Length, filament: 25 mm
Max. RPM: 8000 RPM
Mounting system: Centre hole
Packaging: POS packaging
RPM, optimum: 4000 - 6000 RPM
Width: 20 mm
Packaging unit: 1 piece

Description

Excellent for medium-duty hand-held or automated brushing of workpieces with large surfaces.

With PFERD TOOLS special wire, characterized by high bending fatigue strength.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Developed for general use in the workshop.

Special features

Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.
Highly flexible, enabling optimal adjustment to the workpiece contour.
Long tool life through use of PFERD TOOLS special wire.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.

Ordering notes

This wheel brush is supplied with a variable hole.

Materials that can be worked: Cast iron; Cast steel; Elastomers; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Thermosetting plastics; Wood

Applications: Cleaning; Deburring; Derusting; Paint stripping; Removing oxide layers; Roughening

Drive types: Bench grinder; Drive spindle; Flexible shaft drive; Straight grinder
