Tungsten carbide burrs for high performance, EDGE, conical counterbore shape KSK EDGE HC-FEP

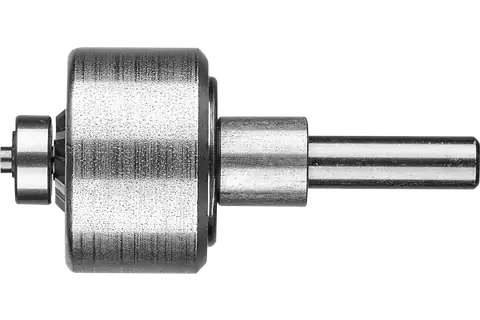

Tungsten carbide burr EDGE conical countersink KSK 45° ECS dia. 16x03mm shank dia. 6mm HICOAT coating defined work on edges chamfering 45°

KSK 1603/6 EDGE 45° ECS HC-FEP

Item number:: 21115472
EAN:: 4007220914106

Tungsten carbide burr EDGE conical countersink KSK 45° ECS dia. 16x03mm shank dia. 6mm HICOAT coating defined work on edges chamfering 45° 1

Technical information

Tungsten carbide burr EDGE conical countersink KSK 45° ECS dia. 16x03mm shank dia. 6mm HICOAT coating defined work on edges chamfering 45°

Angle: 90 °
Cut: EDGE HC-FEP
Dia. ball bearing: 10 mm
Dia. external: 16 mm
Dia. shank: 6 mm
Dia. sleeve: 25 mm
Length, construction: 24 mm
Length, cut: 1 mm
Length, total: 52 mm
RPM, grey cast iron, white cast iron: 12000 - 18000 RPM
RPM, hard non-ferrous metals: 5000 - 7000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 12000 - 15000 RPM
RPM, high-temperature-resistant materials: 5000 - 9000 RPM
RPM, soft non-ferrous metals: 12000 - 18000 RPM
RPM, steels up to 1,200 N/mm²: 12000 - 18000 RPM
Packaging unit: 1 piece

Description

Tungsten carbide burrs with the EDGE HC-FEP cut have been especially developed for defined work on edges. The special design allows the burr to run directly along the edges without damaging the workpiece. In just one step, it is possible to achieve precise edge shapes. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198).

The EDGE Cutting System consists of burrs with the EDGE HC-FEP cut and a special guide sleeve. The system can be used on any commercially available drive to ensure optimal guidance during light deburring work. The chamfers created using the EDGE Cutting System (ECS) are 1.2 mm (+/- 0.2 mm) wide.

Conical counterbore burr for the production of precisely defined chamfers. Suitable for counterboring and chamfering of defined 45° chamfer angles.

Special features

High-quality HICOAT coating for high hardness and wear resistance.
Special design for precise guidance.
Safe and comfortable to guide.
Creates exact edge shapes in one single step.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
Improved guidance.
Can be used with any conventional straight grinder.
Burr is interchangeable.

Recommendations for use

Use the burrs counterrotationally. In order to produce a fine surface, finally pass them over the edges in the direction of rotation.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.

Ordering notes

The EDGE Cutting System (ECS) burr can be reordered and replaced if required. Matching burr: KSK 1603/6 EDGE 45° HC-FEP.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; Nickel-based alloys (e.g. Inconell and Hastelloy); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW); Zinc

Applications: Chamfering; Deburring; Milling; Working on edges; Working on edges (chamfering, rounding)

Drive types: Automated centres; Straight grinder; Tool machine
