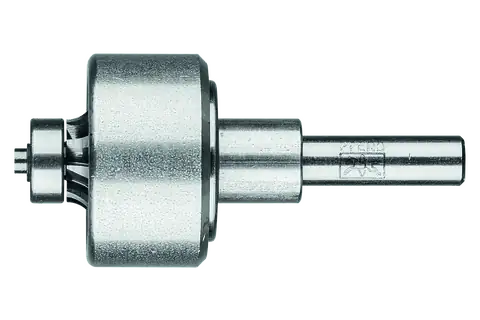

Tungsten carbide concave radius burr EDGE V ECS 16x12mm shank dia. 6mm HICOAT coating defined work on edges, edge rounding R.3.0mm

Technical information

Cut: EDGE HC-FEP
Dia. ball bearing: 10 mm
Dia. external: 16 mm
Dia. shank: 6 mm
Dia. sleeve: 25 mm
Length, construction: 24 mm
Length, cut: 3 mm
Length, total: 52 mm
RPM, grey cast iron, white cast iron: 12000 - 18000 RPM
RPM, hard non-ferrous metals: 5000 - 7000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 12000 - 15000 RPM
RPM, high-temperature-resistant materials: 5000 - 9000 RPM
RPM, soft non-ferrous metals: 12000 - 18000 RPM
RPM, steels up to 1,200 N/mm²: 12000 - 18000 RPM
Radius corner design: 3 mm
Packaging unit: 1 piece

Description

Tungsten carbide burrs with the EDGE HC-FEP cut have been especially developed for defined work on edges. The special design allows the burr to run directly along the edges without damaging the workpiece. In just one step, it is possible to achieve precise edge shapes. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198).

The EDGE Cutting System consists of burrs with the EDGE HC-FEP cut and a special guide sleeve that can be used on any commercially available drive to ensure optimal guidance during light deburring work.

Special features

High-quality HICOAT coating for high hardness and wear resistance.
Special design for precise guidance.
Safe and comfortable to guide.
Creates exact edge shapes in one single step.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
Improved guidance.
Can be used with any conventional straight grinder.
Burr is interchangeable.

Recommendations for use

Use the burrs counterrotationally. In order to produce a fine surface, finally pass them over the edges in the direction of rotation.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.

Ordering notes

The EDGE Cutting System (ECS) burr can be reordered and replaced if required. Matching burr: V 1612/6 EDGE R3.0 HC-FEP.

Applications: Chamfering; Deburring; Milling; Rounding; Working on edges; Working on edges (chamfering, rounding)

Drive types: Automated centres; Robot; Straight grinder; Tool machine

Downloads

Tungsten carbide burrs for high performance, EDGE, concave radius burrs V EDGE HC-FEP

Tungsten carbide concave radius burr EDGE V ECS 16x12mm shank dia. 6mm HICOAT coating defined work on edges, edge rounding R.3.0mm

V 1612/6 EDGE R3,0 ECS HC-FEP
