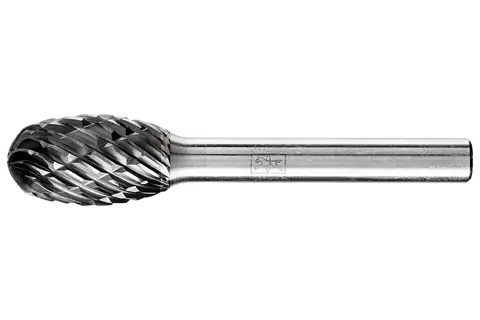

Tungsten carbide high-performance burr ALLROUND oval TRE dia. 12.7x22.2mm shank dia. 6.35mm HICOAT coating universal

Technical information

Cut: ALLROUND HC-FEP
Dia. external: 12.7 mm
Dia. shank: 6.35 mm
Length, cut: 22.2 mm
Length, total: 66.68 mm
RPM, grey cast iron, white cast iron: 11000 - 28000 RPM
RPM, hard non-ferrous metals: 6000 - 19000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 6000 - 15000 RPM
RPM, rust and acid-resistant steels: 11000 - 19000 RPM
RPM, soft non-ferrous metals: 11000 - 23000 RPM
RPM, steels up to 1,200 N/mm²: 11000 - 23000 RPM
Radius corner design: 5 mm
Packaging unit: 1 piece

Description

High-performance cut ALLROUND with HICOAT coating HC-FEP is characterized by its high degree of hardness and wear resistance. It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant. It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Oval burr according to DIN 8032.

Special features

Significantly better stock removal rate than burrs with a conventional cross cut.
Saves time and money thanks to its very high stock removal rate on key materials.
Comfortable working with reduced vibration and less noise.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
Observe the recommended rotational speeds.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6.35 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Case-hardened steels; Cast iron; Cast steel; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; Stainless steel (INOX); Steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine
